Volumetric Capture Application: Dual Setup Guide

This guide explains how to set up and run two Volcap applications in parallel, receive both streams, and visualize them in a single Unity scene with audio streaming.

Table of Contents

  1. Hardware Requirements
  2. Network & Infrastructure Preparation
  3. RabbitMQ Installation & Configuration
  4. Volcap Installation
  5. Remote Camera Machine Setup
  6. Unity Project Setup
  7. Camera Connection
  8. Calibration Process
  9. Audio Setup
  10. Reconstruction Workflow
  11. Unity Streaming & Visualization
  12. Troubleshooting & Best Practices
  13. Double Setup Checklist

Hardware Requirements

  • 2 Volcap Machines
    • Each runs one Volcap application
    • Both require GPU and CUDA installation (tested with version 12.7)
    • One of these machines or any other machine on the same network can host the RabbitMQ server
  • Cameras
    • Recommended: 4 cameras per Volcap setup
    • One camera per remote machine
    • 4 cameras are easier to calibrate with our box calibration algorithm than 3 cameras
    • 3 cameras will have blind spots when capturing a human
    • Camera machines do not need GPU or specific requirements
    • Compatible with both Orbbec and Kinect Azure cameras
  • RabbitMQ Server Machine
    • Should be a desktop (not laptop) due to higher bandwidth requirements
    • Requires relatively good CPU (we used i7-13700 without issues)
    • If CPU is less powerful, RabbitMQ server will not be able to process data
  • Networking Equipment
    • 1 network switch to handle all machines
    • Multiple Ethernet cables to connect everything

Network & Infrastructure Preparation

  • Identify IPs to all machines for easier use.
  • Connect all devices to the switch and ensure they’re on the same subnet.
  • Test network connectivity with ping between all machines.
  • Disable unused network adapters to avoid routing issues.

RabbitMQ Installation

Step 1: Install Prerequisites

  1. Install Erlang
    • Download from: https://www.erlang.org/downloads
  2. Install RabbitMQ
    • Download from: https://www.rabbitmq.com/docs/download

Step 2: Enable Management Plugin

  1. Open RabbitMQ command prompt (search in Windows Start menu)
  2. Run the following command: rabbitmq-plugins enable rabbitmq_management

Step 3: Configure RabbitMQ

  1. Navigate to localhost:15672 in your browser
  2. If the page doesn’t load, restart RabbitMQ from Windows Start menu
  3. Login with default credentials: guest / guest
  4. Go to Admin tab → Add User
  5. Create your username and password (these will be used in following steps)
  6. Assign admin privileges to the new user
  7. Click on the new user → Set Permissions on virtual host
  8. Log out and log in again with your new credentials

Description

Step 4: Set Firewall Rules

  • Open Windows Defender Firewall → Advanced Settings.
  • Add inbound and outbound rules for ports:
  • 5672 (RabbitMQ AMQP, for remote use)
  • 11234 (automatic Volcap camera discovery)
  • 15672 (RabbitMQ management, outbound only)
  • Only one network adapter should be enabled (the Ethernet one). You can check this on Network Connections
  1. In the left panel of the window that poped-up select Inbound Rules
  2. In the right panel that appeard select New Rule…
  3. In the window that appeared select Port and hit Next
  4. In Specific local ports text box type 5672 and hit next
  5. In the next window leave the Allow Connection option selected and hit next
  6. In the next window leave everything selected and hit next
  7. In the next window you can add a name for the rule and a description, so as to know that you created that rule, and it’s not a Windows default rule. Repeat all the steps in order to create an Outbound Rule too.

Description

Volcap Installation

Prerequisites

  • CUDA installation is required and must be added to system PATH

Installation Steps

  1. Extract Volcap
    • Unzip the compressed folder
    • Copy to a directory that doesn’t require administrative privileges (e.g., Documents)
    • Do NOT copy to Program Files
  2. Run Volcap
    • Open command prompt in the Volcap folder
    • Run with the following command: volcap.exe –local_ip --broker_ip --broker_username --broker_password

Parameter Explanation

  • --local_ip: Your local machine IP
  • --broker_ip: IP address of the machine running RabbitMQ
  • --broker_username and --broker_password: Credentials created during RabbitMQ setup
  • --broadcast: Only use when running 1 Volcap application (auto-discovers cameras but incompatible with dual setup)

Remote Machine Installation

  1. Install RemoteEye
    • Unzip and install on each remote camera machine
    • Copy device_plugins folder and remote_eye_k4a.exe to:
      C:\Program Files (x86)\RemoteEye\RemoteEye

  2. Verify Service
    • Check Windows Task Manager → Services tab
    • Ensure remote_eye_listener_service is running
    • This is only important when using the --broadcast flag
  3. Connect Cameras
    • Plug in cameras (supports both Orbbec and Kinect Azure)

Unity Setup

  1. Create New Project
    • Open Unity and create a new 3D project with built-in renderer
  2. Import Package
    • Go to AssetsImport Package
    • Select the Unity package and import all
  3. Configure Scene
    • Load the main scene
    • Find 2 DLLCaller GameObjects
    • If testing only 1 Volcap stream, disable DLLCaller1
    • Set RabbitMQ server IP and credentials on both GameObjects

Camera Connection

Option 1: Auto-Discovery (Single Volcap Only)

  • Run Volcap with --broadcast flag
  • If remote machines are properly set up, all available cameras appear in Volcap UI
  • Select all cameras and press Connect

Run this command on each remote machine:

  • cd “C:\Program Files (x86)\RemoteEye\RemoteEye”
  • remote_eye_k4a.exe –address --user --pass --port 5672

Parameter Details:

  • --address: RabbitMQ server IP address
  • --user and --pass: RabbitMQ credentials from setup
  • --port: Should be 5672

After running these commands, cameras should appear in the Volcap available devices widget, select all and connect.

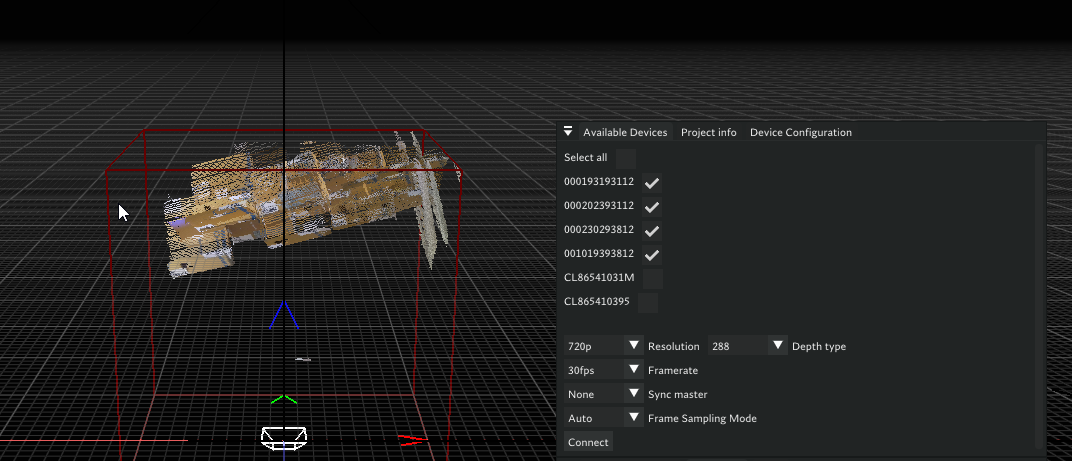

After successful connection you should be seeing pointclouds on the volcap scene.

Description

Calibration Instructions

Description

Initial Calibration

  1. Start Calibration Process
    • Go to calibration widget in Volcap
    • If parameters load correctly, press Process to start calibration
    • Monitor command prompt for errors
    • Final error per camera should be ≤ 0.02 meters
    • When calibration process finishes, then you need to save calibration , restart volcap, connect cameras and open the saved project, instruction below (known bug)

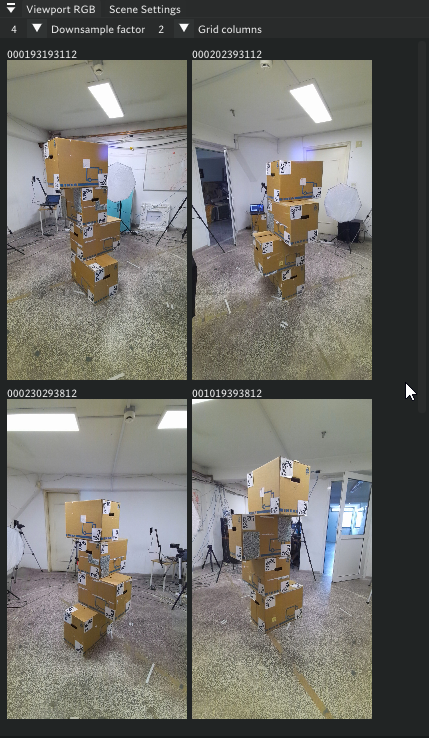

  2. Calibration Setup Tips
    • Place calibration boxes at the center of the scene
    • All cameras should look at boxes in center of view (check viewport widget)
    • Boxes should not be too close to image edges
    • Ideal setup: Cameras 1.5+ meters away, boxes occupy 60% of image height with 20% margins top/bottom
    • Each camera should see 2 sides of the boxes
    • Ensure correct box structure orientation

Description

Save and Load Calibration

  1. Save Calibration
    • After successful calibration: FileSave Project As
    • This creates a .volcap file storing calibration data
    • Reuse this file if cameras aren’t moved
  2. Load and Verify Calibration
    • Restart Volcap
    • Connect cameras
    • FileOpen Project → load saved .volcap file
    • Press Connect on available cameras to see calibration in viewer

Calibration Adjustment

  1. Z-axis Correction (known bug)
    • Go to calibration editing widget
    • Ensure ALL is selected at top
    • Use + sign on tz to raise cameras
    • Use - sign for small downward adjustments
    • Stop when floor is slightly visible in Volcap viewer
    • Save project after adjustments
  2. Troubleshooting

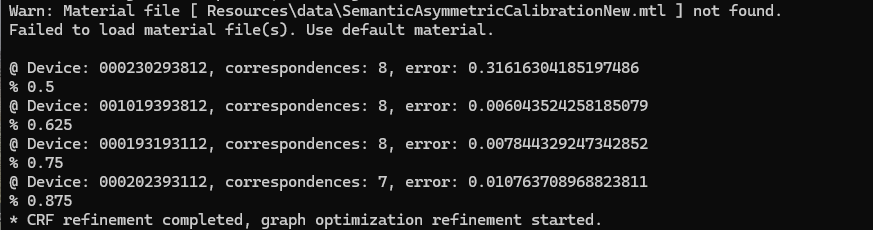

    Calibration Example

    Below is an example of a calibration process. In this case, you can observe that one of the cameras—specifically the one with serial number 2300293812—shows a calibration error greater than 0.02. Such a high error indicates that the calibration for this camera is not accurate.

    Calibration error example

    The following animation demonstrates the impact of inaccurate calibration. Notice that the point cloud rendered in blue is misaligned; this corresponds to the camera with serial number 2300293812 identified earlier as having a high error.

    False calibration example

    This visual discrepancy confirms that the calibration for this camera is incorrect and should be addressed to ensure overall system accuracy.

    • If calibration is off, slightly move cameras or boxes, or lower the faulty camera
    • Sometimes rotating boxes 5 degrees fixes issues
    • Check command prompt or Volcap viewer for specific camera errors
    • Redo calibration process
    • This process requires some trial and error to get it right, but once the calibration is correct, then you do not have to do the calibration.

Audio Setup

  1. Hardware Setup
    • Connect microphone to computer
    • Compatible with webcam microphones and separate microphones

    False calibration example

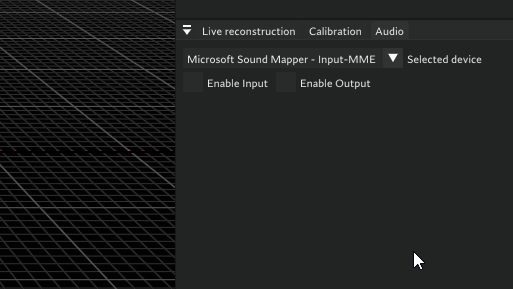

  2. Audio Configuration
    • Note microphone name in Windows sound settings
    • In Volcap audio widget, select microphone from dropdown
    • Multiple driver entries may appear; first iteration is usually correct
  3. Audio Testing
    • Make sure that all cameras have been connected, some times camera connections takes 4-5 seconds
    • Select audio source
    • Press Enable Input to see live audio graph
    • Make sounds to confirm input from the graph
    • To switch sources, re-enable “Enable Audio” checkbox after selection

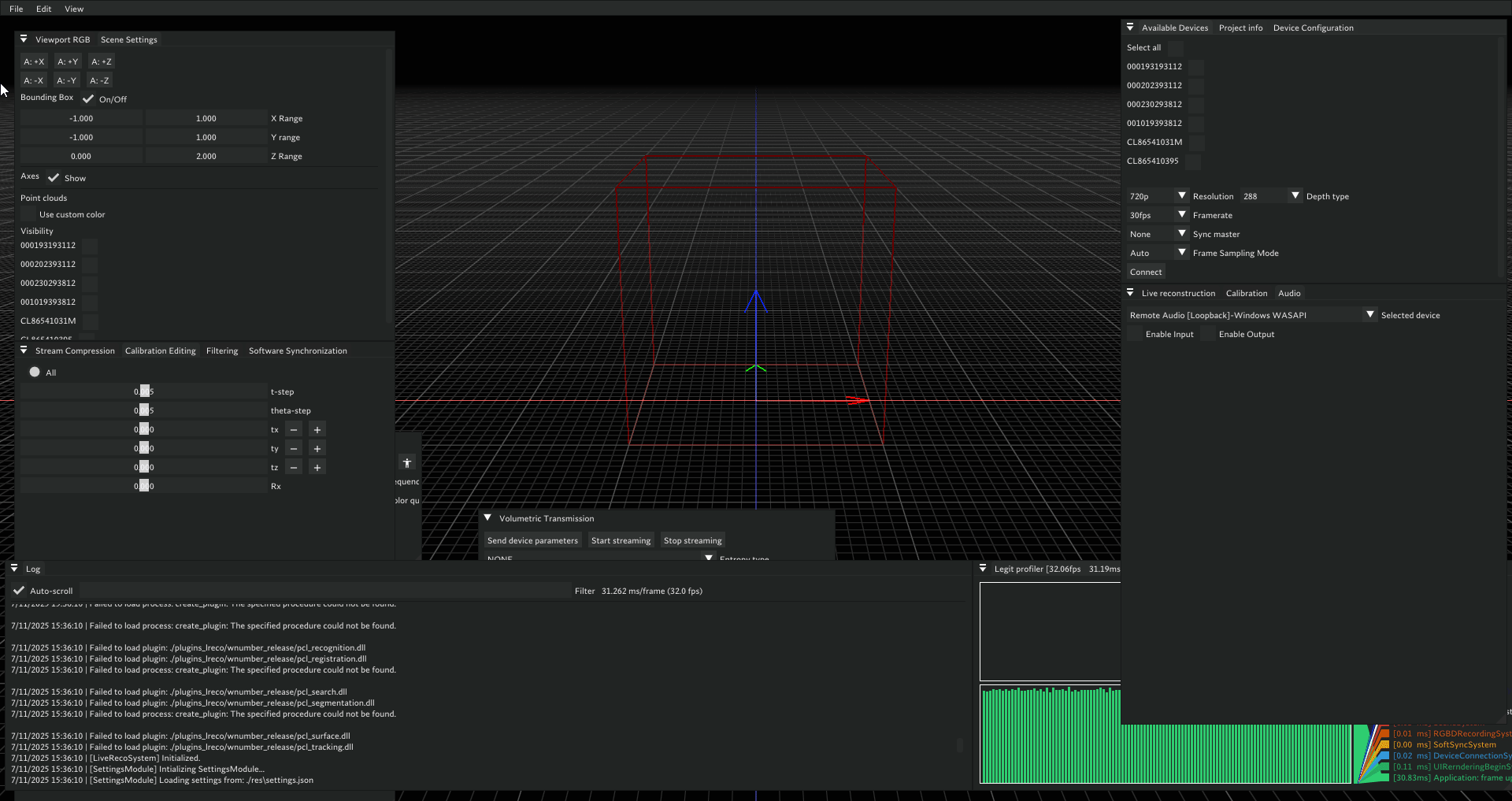

Reconstruction Instructions

Setup Reconstruction

  1. Verify Plugin Loading
    • Check live reconstruction widget
    • Plugin name should appear in dropdown with Start/Stop buttons
    • If not loading, check file paths
  2. Start Reconstruction
    • Ensure cameras are connected and calibration is loaded
    • Press Start in live reconstruction widget
    • This creates separate thread from main Volcap thread

Configure Scene Settings

  1. Bounding Box Adjustment
    • Use scene settings widget sliders
    • Crop out floor on lower Z-axis for accurate reconstruction
  2. Enable Filtering
    • In filtering widget, check erosion depth filter
  3. Preview
    • Stream data to Unity for reconstruction visualization (Streaming workflow)

False calibration example

Unity Streaming Setup

Scene Configuration

  1. GameObject Setup
    • Enable DLLCaller0 for single stream
    • Enable both DLLCaller0 and DLLCaller1 for dual streams
    • Ensure correct IP addresses and credentials are set
  2. Starting Sequence
    • Start Unity scene after opening 1 or 2 Volcap applications
    • Important: Restart Unity editor between sessions to avoid crashes

Streaming Workflow

Prerequisites Checklist

Before streaming, ensure you have completed:

  1. ✅ Load project
  2. ✅ Connect cameras
  3. ✅ Select and enable audio source
  4. ✅ Start reconstruction
  5. ✅ Crop floor
  6. ✅ Enable erosion filter
  7. ✅ Start Unity scene

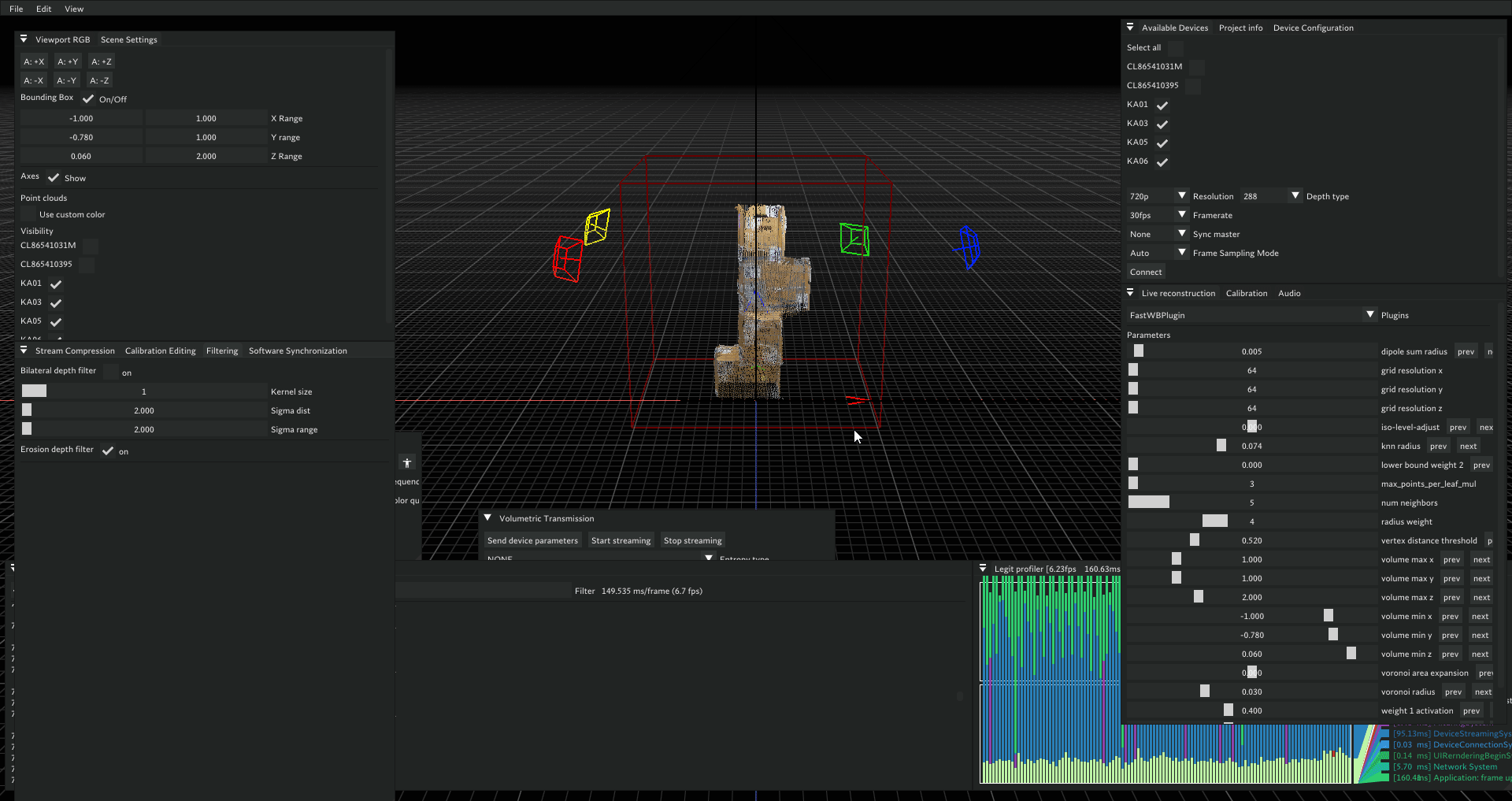

Start Streaming

  1. In Volcap, go to Volumetric Transmission widget
  2. Press Send Parameters
  3. Press Start Streaming

Result: Unity should render reconstruction and play audio. Audio may be choppy depending on network and FPS but should remain audible.

False calibration example

Troubleshooting

  • If any step fails, restart the process.
  • Closing Volcap when reconstruction is not running clears RabbitMQ.
  • To clear RabbitMQ manually, restart the service from Windows with rabbitmq service start/stop

Improving Reconstruction

Real-time Calibration Adjustment

  • Use Unity to visually verify calibration quality
  • Adjust camera rotation/translation in Volcap’s calibration editing widget and see changes live in Unity
  • See real-time changes in Unity

Reconstruction Parameters

After starting reconstruction, adjust these key parameters:

  • iso-level-adjust: Make only small changes
  • dipole sum radius: May need to lower
  • num neighbors: Increase value
  • knn radius: Decrease value

These parameters should make subtle improvements to reconstruction quality.

Note: This setup requires careful attention to calibration and network configuration. Save project files after successful calibration for easier recovery and reuse.

Double Setup Checklist

  1. Clear RabbitMQ (see above methods).
  2. Calibrate both setups and save project files.
  3. Open both Volcap applications:
    • Send cameras
    • Open project
    • Connect cameras
    • Select and enable audio input
    • Start reconstruction
    • Adjust bounding box and crop floor
    • Enable erosion filter
  4. Open Unity scene and start it.
  5. On both Volcaps, press Send Device Parameters and Start Streaming in the Volumetric Transmission widget.

Tip:
Take your time with calibration and network setup. Once correctly configured, the workflow becomes much smoother. Always back up your calibration files and document your network configuration for future reference.
